Product Details

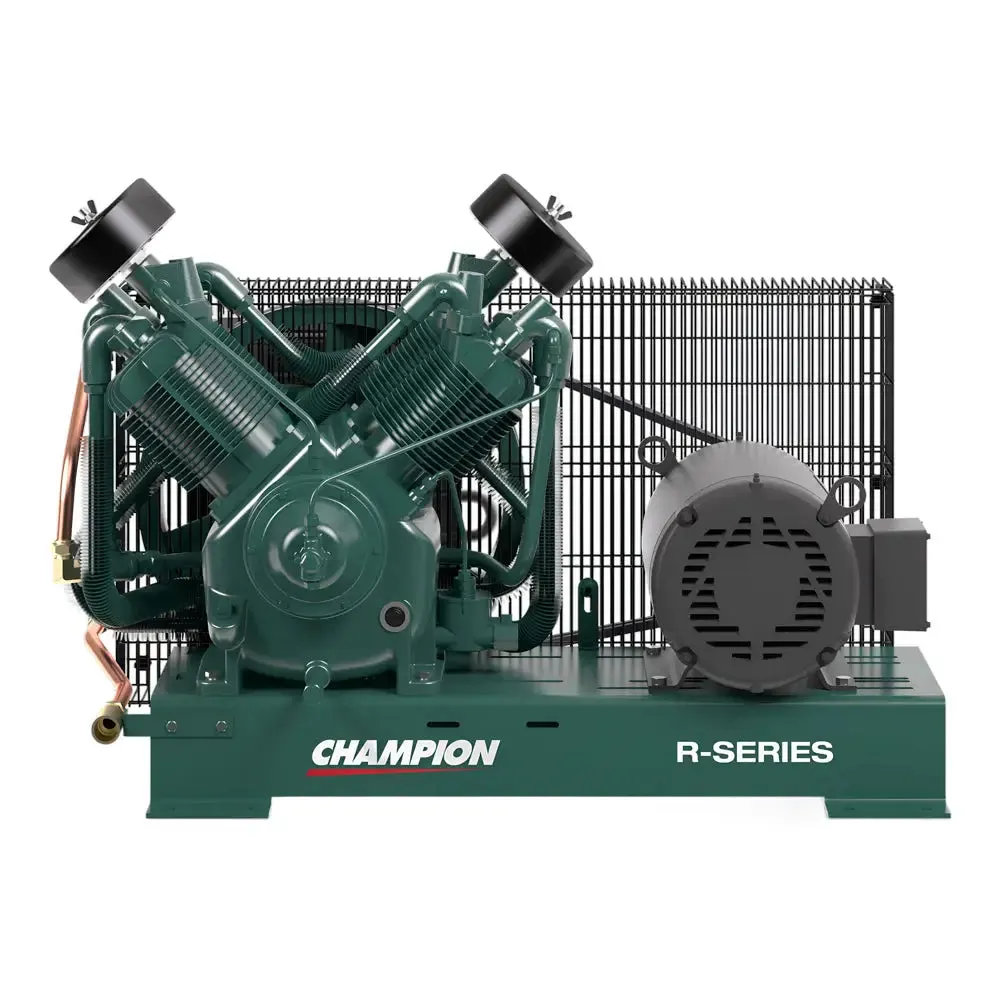

＋The Champion R-Series BR10 10 HP Base Mount Air Compressor is the perfect choice for service trucks, with a low profile design that maximizes space utilization. Designed to be flexible and customizable, these compressors are ideal for service vehicles that already have air tanks built into the chassis. With its rugged construction and superior performance, the Champion R-Series BR10 is the ultimate solution for on-the-go air power. And with a 3-year warranty against defects, you can trust in its reliability and longevity.
Features:
- Flexible configurations for custom needs
- Load-less starting tech for energy efficiency
- 10 Micron intake filter for clean air supply
- ODP NEMA 1760 RPM electric motor for optimal performance
- Enclosed belt guard for added protection
- Dual control for start/stop or constant speed mode
- Quality accessories available for customization
- Low-profile design for service trucks
- Ideal for service trucks with built-in air tanks
- ASME/NB certified receivers for safe operation
- 0-300 PSIG air pressure gauge for precise control
- NEMA 4-rated parts available
- 3-year warranty against defects
- Premium extended warranty available
Specs:
Product Configuration: SimplexTank Configuration: Base
Pump Model: R30
Pump RPM @ 175 PSI: 718
Tank Size: Gallons/(liters): N/A/N/A
ACFM @ 80 PSIG/(m3/hr @ 5.5 BAR): 35.7/60.7
ACFM @ 125 PSIG/(m3/hr @ 8.6 BAR): 34.7/59
ACFM @ 175 PSIG/(m3/hr @ 12 BAR): 33.8/57.4
Est. Ship Weight: Lbs./(kg): 540/245
Model Number: BR10
Application:
Automotive and industrial useService trucks
